Accessories saws

Suitable for series WE / WEK / WS / WSK / WTS / WTSK / RS / RSK



ZKW16_Gelände2_S56805









ZKW16_Gelände1_S56805

 Terrain driving means 2-wheel, pivoted, air wide, for transporting on difficult terrain. For all HMG saws except PTO saw “ZA” suitable! Weight 7.7 kg. Order no. S 56805
Chassis with 2 pneumatic wheels and 2 axles 25 mm. Suitable for all HMG saws! Weight 7 kg. Order no. 619 505
Chassis with 2 solid rubber wheels and 2 axles 25/20 mm. Suitable for all HMG saws! Weight 10 kg. Order no. 619 510

ZKW16_Transporw_S56810









ZKW16_Transporw_S56811

Dolly 2-wheels with fixing bar (mounted on carrying handle of the saw) for easy transport on 4 wheels. Weight 4.9 kg. Order no. S 56810







Trolley for PTO saw (ZA) 2-wheel without fixation (is already integrated on the three-point linkage of PTO saw “ZA”). Weight 4.5 kg. Order no. S 56811


Industrial power cable with CEE plug and coupling 400V, 2.5mm, 16A, 5-core, IP44, H07RN-F, up to 12kw

Power cable 10m 400V Bestell-Nr. 589 110

Power cable 25m 400V Bestell-Nr. 589 118
 ZKW16_Gelenw766_675040 PTO shaft 766, BG 2, adjustable length from 766 mm to 989 mm, can be adjusted by shortening. Weight 7.1 kg.  Order no. 675040
 ZKW16_Gelenw966_675045 PTO shaft 966, BG 2, adjustable length from 966 mm to 1283 mm, can be adjusted by shortening. Weight 8.3 kg. Order no. 675045
 ZKW16_Wippver_S56816 Extension of tilting mechanism extendable, with casters and return spring for the rocker, 50 cm extendable. For all HMG rocker circular saws suitable. Weight 7.8 kg. Order no. S 56816
 ZKW16_Schäls_686210 Centripetal pump solid steel, 600 × 4 / 5.5 × 30 mm with 4 knives, reground, for tips and peeling of piles. For all HMG table saws. Weight 9.4 kg. Order no. 686210
 ZKW16_Zuführt_200101 Feed for peeling disc, for applying wood piles. For all HMG table saws. Weight 2.9 kg. Order no. 200101
 ZKW16_Rundholze_200302 Logs trimming for saw table. For all HMG table saws. Weight 3.5 kg. Order no. 200302
 ZKW16_Höhenvers_S56808 Height adjustment from 0-18 cm for all HMG circular saws, also for older devices. Preferences 6-12-18 cm. Weight 8 kg.

  • Height adjustment to new equipment factory assembled (recommended!) Order no. S 56808
  • Height adjustment as a retrofit kit for older devices. Order no. S 56807
 ZKW16_Betriebs_200460ZKW16_Betriebs_200459

Operating hours counter for PTO connection in a robust housing. Display change between PTO speed and hours of operation possible. Weight 0,9 kg. Order no. 200460







Operating hours counter for electric motor in a robust housing. Weight 0.3 kg. Order no. 200459
 ZKW16_Sägetisch_S56801 Saw table 1300 × 850mm hinged stop as a retrofit kit with riving knife and aluminum. For all HMG rocker saws suitable except WS 7-Z, WSK 7-Z, WSK 7-7Z and series WSK 7-GZ. Weight 51 kg. Order no. S 56801
 ZMW16_SappieundGürtelhalter_ZKW16_Sappihalter_710778

Quality Sappie HS 380 with ash handle 38 cm. For ergonomic, back-friendly moving and picking up a few small logs and wood pieces. Weight 0,9 kg. Order no. 710770



Sappie belt holder for Sappie HS 380, with snap closure. Order no. 710775



Sappie machines Holder for Sappie HS 380. Weight 0,7 kg. Order no. 710778


 ZKW16_Absaugvor_S56819 Suction device for circular saws with 100mm suction. Easy to mount on existing bores at chip box. Serie Excessive chip discharge grid is no longer needed! For all HMG suitable boaters. Weight 2 kg. Order no. S 56819
 ZKW16_DreipZA_S56823 Three-point linkage rear + side for CAT I and II as a retrofit kit, rear mounted, with equipment bolt sideways fixing at link tractor, for all HMG rocker or tilting table saws suitable. Weight 33 kg. Order no. S 56823
 ZKW16_DreipZ_S56820 Three-point linkage side for CAT I and II as a retrofit kit, Lateral Mounting, for all HMG Wippsägen or tilting table saws suitable. Weight 22 kg. Order no. S 56820
 ZKW16_DreipZ_S56822 Three-point linkage rear 3 parts for CAT I and II as a retrofit kit, rear mounted, for all HMG rocker saw Saw table -without suitable. Weight 5.2 kg. Order no. S 56822
 ZKW16_E-Motor_S56828

Electric motor with switch-plug combination, 2x pulleys 13 mm 2 groove, 2x belt 13 mm and motor bracket, suitable for all HMG circular saws with belt shaft.

Electric motor 7.5 kw 400V 16A CEE S6. Weight 34 kg. Order no. S 56828
Electric motor 10kw 400V 16A CEE S6. Weight 46 kg. Order no. S 56829
 ZKW16_GZteile_S56830 PTO system “GZ” with bevel gears, gear holder, 2x pulleys 13 mm 2 groove, 2x belt 13 mm, V-belt protection box and three-point linkage rear 3-piece, all HMG saw rocker suitable with belt shaft. Weight 34 kg. Order no. S 56830
 ZKW16_ZAteile_S56827 Table saw 13 mm, V-belt protection box and three-point linkage CAT I and II, for all HMG rocker or rocker PTO system “ZA” with PTO switching mechanism, bevel gear, PTO connection, rear and side, gear holder, pulley 13 mm 2 groove, 2 x V-belt suitable V-belt shaft. Weight 69 kg. Order no. S 56827

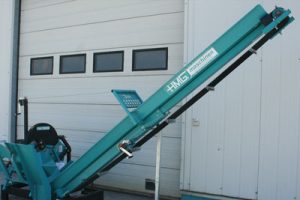

 ZMW16_FT400_M67510 4 m telescopic conveyor FT 400 with 2 belt rollers, conveyor belt (made of special rough surface with a plurality of textile inserts and 13 piece of metal cleats and hand winch. Weight 143 kg. Order no. M 67510

  • with E-Motor 0,75kW 400V 16A CEE S6 + switch (FT 400-D) Order no. M 67515
  • with electric motor 0.75kW 230V CEE + switch (FT 400-W) Order no. M 67513
  • with hydraulic motor, hydraulic hose for supply and return and flow control valve for conveyor speed (FT 400 T) Order no. M 67520
  • With hydraulic motor and hydraulic pump with hoses and pump holder (FT 400-GZ) Order no. M 67523
  • Charge 5 m telescopic conveyor FT 500 (instead of 4 m FT 400) Order no. M 56860
ZKW16_GKF_S56840 Main frame GKF for HMG tilting saw and HMG telescopic belt conveyor with timber feed tray, stop and hand winch. Weight 102 kg. Order no. S 56840
